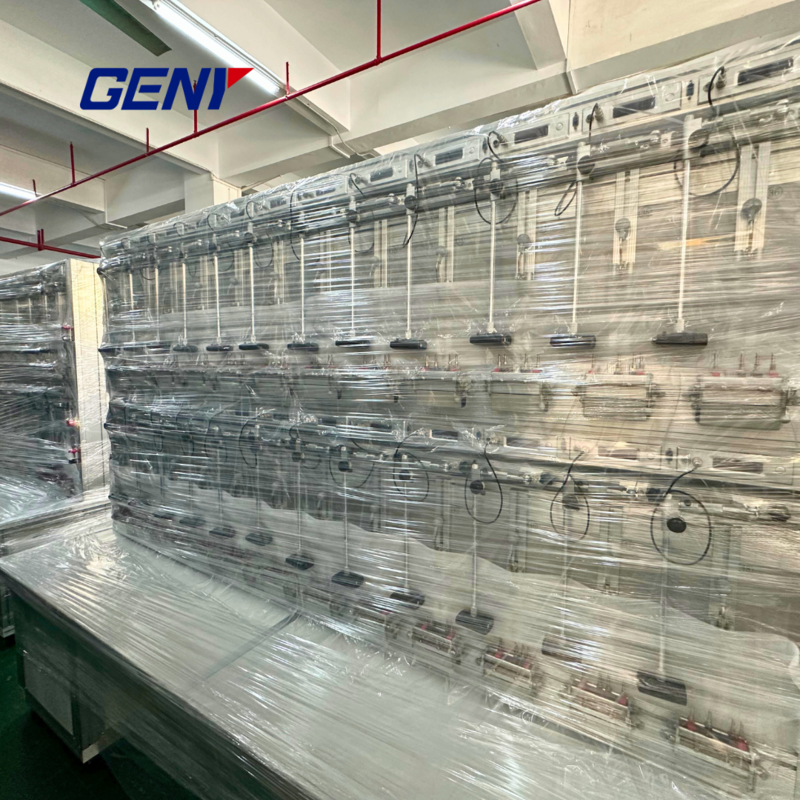

Meter Test Bench for Single Phase Energy Meters

Meter Test Bench for Single Phase Energy Meters

Markenbezeichnung:	GENY
Modellnummer:	YC-1891D
MOQ:	1pcs
Preis:	Verhandlungsfähig
Zahlungsbedingungen:	L/c, t/t, d/p
Versorgungsfähigkeit:	30 Prozent pro Monat

Ausführliche Information

Produkt-Beschreibung

Ausführliche Information

Herkunftsort:

China

Zertifizierung:

ISO, CE

Dokument:

Single-phase meter test sys...em.pdf

Ausgangsstrombereich:

1 mA -120A (bis zu 230a max)

Ausgangsstromleistung:

2000va (max)

Ausgangsspannungsleistung:

1000va (max)

Ausgangsspannungsbereich:

24 V -288v

Spannungsausgang: Bereich:

Bereich: 24 V - 288 V

Stromausgabebereich:

1ma - 120a (max 230a)

Phasenregelungsbereich:

0 ° - 360 °

Stromversorgung:

Wechselstrom 220 V ± 10%, 50 Hz ± 2 Hz

Verpackung Informationen:

Sperrholzfall

Versorgungsmaterial-Fähigkeit:

30 Prozent pro Monat

Hervorheben:

single phase energy meter tester

meter test bench equipment

stationary meter test bench

Produkt-Beschreibung

Meter Test Bench for Single Phase Energy Meters

Advanced Testing Solution for Energy Meter Calibration

Our Meter Test Bench provides comprehensive testing capabilities for single-phase energy meters, ensuring accurate calibration and performance verification.

Key Features

Supports testing for: Active power, Reactive power, Active energy, Reactive energy
Start-up and creep tests with automatic calibration
Measures basic error, average error, standard deviation, and 24-hour variation
Comprehensive influence tests including voltage, frequency, harmonics (2nd-21st), and phase sequence
Simultaneous current measurements on the same meter rack
Test energy meters without disconnecting voltage or current circuits
Built-in protections: current open circuit and voltage short circuit
Integrated optical scanning head for improved operational efficiency
Dual operation modes: automatic and manual
PC software for automatic error data processing, storage, and real-time output
Data management with customizable report printing and barcode input
Configurable meter positions: from 3 up to 60 meters
Forward/reverse active and reactive energy error testing
Time base source SW-5D for measuring daily timing error
Communication test and broadcast time synchronization
Multiple verification methods: pulse counting, timing, or start-stop energy
Additional test capabilities: load switching, demand period, register indication, and more

Technical Specifications

General Specifications
Power Supply	AC 220V ±10%, 50Hz ±2Hz
Operating Temperature	-10°C to +40°C
Humidity Range	35% to 95%

Voltage Output
Range	24V - 288V
Maximum Output Power	1000VA
Resolution	0.01%
Stability	0.02% / 120s
Load Regulation	0.01%
Distortion	≤ 0.3% (within full linear load range)

Current Output
Range	1mA - 120A (max 230A)
Maximum Output Power	2000VA
Resolution	0.01%
Stability	0.02% / 120s
Load Regulation	0.01%
Distortion	≤ 0.3% (within full linear load range)
Continuous Current Capacity	100A
