YC1893D Three-Phase Smart Meter Test System

32 Positions | 160A | Class 0.02

Designed for Utility, Laboratory, and Smart Meter Manufacturing Applications

The GENY YC1893D Three-Phase Smart Meter Test System is a high-precision automated solution designed for testing and calibration of single-phase and three-phase energy meters. Supporting 32 test positions, current output up to 160A, and Class 0.02 accuracy, the system is ideal for utility companies, meter manufacturers, metrology laboratories, and quality inspection institutions.

With integrated Isolation Current Transformers (ICTs), the YC1893D can also test closed-link / IP-link meters, making it a reliable platform for modern smart meter applications.

Product Overview

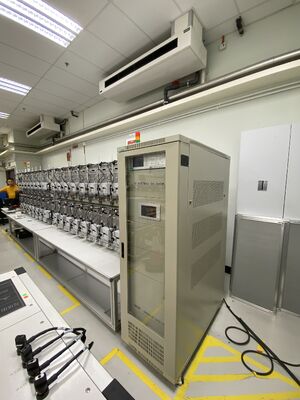

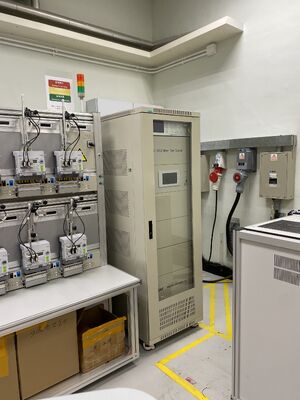

The YC1893D combines a three-phase static power source, reference standard meter, multi-position test rack, smart meter communication modules, optical probes, QCD quick connection devices, and PC control software into a complete testing platform.

System Operation Modes

Automatic operation
Semi-automatic operation
Manual operation

Suitable Applications

Smart meter testing
Accuracy verification
Calibration
Function testing
Batch inspection
Closed-link meter applications

Key Benefits

32-Position Parallel Testing

Two racks with 16 positions each
High-efficiency batch testing
Ideal for utility and production environments

Current Output Up to 160A

Suitable for high-current meter testing
Supports a wide range of meter specifications
Designed for demanding field and laboratory requirements

Class 0.02 Accuracy

High-precision reference standard meter
Stable output and repeatable performance
Suitable for calibration and verification applications

Closed-Link Meter Testing with ICTs

Isolated and potential-free current signals
Supports IP-link / closed current path meters
Expands compatibility beyond conventional test benches

Smart Meter Communication Ready

Optical probe support
RS232 / RS485 communication interfaces
Multi-port serial expansion for parallel communication

IEC-Compliant Testing Capability

Suitable for meter testing according to:

IEC 62053-22
IEC 62053-21
IEC 62053-23
IEC 62053-11
IEC 60736

Main System Components

The YC1893D system includes:

Three-phase static power source
Three-phase reference standard meter
32-position meter test rack
Smart meter function test system
Optical probes
Scanning heads
Quick Connector Devices (QCDs)
Isolation Current Transformers (ICTs)
PC and control software
Serial communication modules

Test Functions

The system can perform the following tests automatically:

Basic error test
Accuracy test in all four quadrants
Repeatability test
Creep test (no-load test)
Starting current test
Register test

Influence quantity test
Voltage variation
Voltage unbalance
Frequency variation
Harmonic distortion
Reverse phase sequence

Forward and reverse energy test
Sub-harmonic test
Odd harmonic test
Simultaneous testing of different meter constants
Calibration of lower-accuracy reference standards

Technical Specifications

Power Source Parameters

Parameter	Specification
Test voltage output (Phase-Neutral)	3*(5 ~ 456 V)
Power of the voltage output	3*1000VA/220V
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	< 0.01%
Distortion factor	< 0.3% for linear resistance load
Harmonics	2nd ~ 51st free programmable
Test current output	3* (1 mA ~ 10 mA / 10mA ~ 160 A)
Power of the current output	3*2600VA/160A
Phase angle range	0 ~ 360°
Phase angle resolution	0.01°
Phase angle setting accuracy	0.1°
Frequency range	45 Hz ~ 65 Hz
Frequency resolution	0.01 Hz

Reference Standard Meter

The system is compatible with:

GENY SZ-03A-K8F
ZERA EPZ-303

Key Features

Voltage range: 5V to 480V
Current range: 10mA to 160A
Voltage, current, power, and energy error: ≤ ±0.02%
Supports multiple wiring modes
Supports harmonic analysis
Supports waveform display
Supports test bench verification

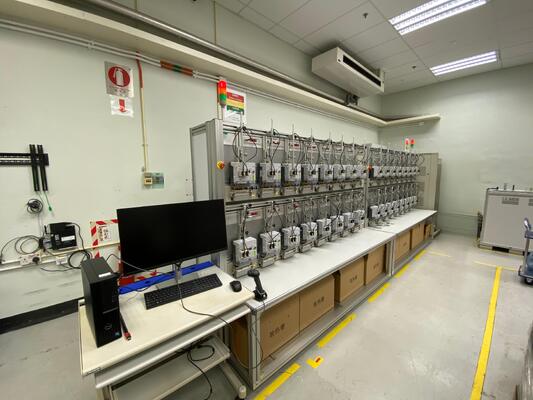

Test Rack Design

Rack Features

Aluminum alloy construction
Lightweight, strong, and corrosion-resistant
16 positions per rack, 32 positions total
Wheel-mounted for easier movement

Single Rack Dimensions

2426mm (W) * 900mm (D) * 1865mm (H)

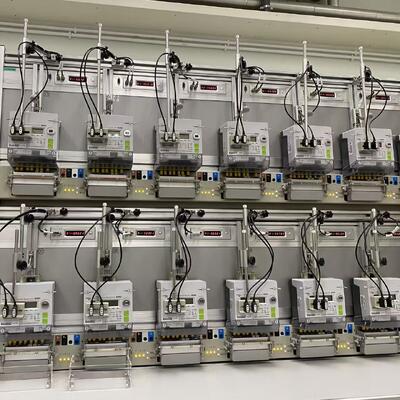

Each Meter Under Test (MUT) Position Includes

QCD quick connection device
Scanning head
Optical probe
Error LED display and input
MUT communication socket

QCD Quick Connector Device

The QCD is designed for flexible testing of both single-phase and three-phase meters.

Features

Spring-loaded current pins to reduce terminal stress
Minimum pin pitch down to 11mm
Adjustable pin row movement
Current pins suitable for 160A long-duration operation
Easy-to-remove terminal pins
Supports LT-CT operated meters
Adaptable to special terminal structures such as Landis+Gyr Z-shape terminals

Smart Meter Communication

Optical Probe

Compliant with IEC 62056-21
Supports ANSI C12.18
Infrared optical interface
RS232 integrated DB9 connector
Maximum baud rate: 38400bps
Magnetic fastening
Cable length: 1.5m

Serial Communication Expansion

The system uses multi-port serial communication to support parallel communication with up to 32 meters under test, making it suitable for smart meter function testing and data acquisition in batch operation environments.

Applications

Utility companies

Meter manufacturers

Metrology laboratories

Quality inspection departments

Calibration laboratories

Smart meter R&D and production testing

Why Choose GENY

Specialized in meter testing equipment and calibration systems
Strong experience in single-phase and three-phase meter testing applications
High-accuracy, high-current, and smart meter compatible solutions
Supports both standardized and customized system design
Proven project experience in utility-grade and overseas markets
Professional technical support and engineering service
